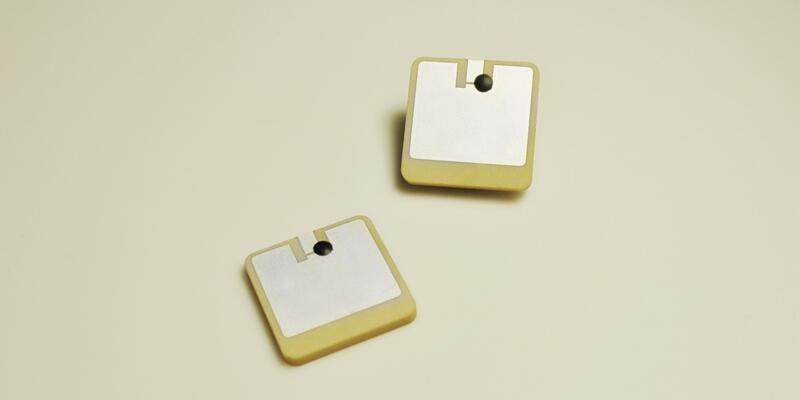

25*25mm UHF RFID Metal Tag


25*25mm UHF RFID Metal Tag



                                UHF RFID Metal Tag 25*25mm


Evertrend is a leading supplier for UHF RFID Metal Tag. The Evertrend RFID metal tag has been used in most applications, such as logistics tracking, Asset Tracking, Container Tracking etc.

UHF RFID Metal Tag 25*25mm has long reading distance as 5M with this small size.

Features introduction

Tag Size: 25*25mm

Tag type: Passive UHF RFID Tag, Read/Write

Protocol: EPC Class1Gen2ISO18000-6C)

Frequency range: 860~928MHz

Chip: Alien Higgs3, Impinj M3/M4 (Customizable)

Storage: EPC 96Bits, User 512Bits

Handheld reader: 2m or above28dBm

Fixed reader: 5m or above30dBm

Reading distance will be different according to the environment and antenna gain

Erase cycle:100,000

Temperature: -40~200

Attachment: 3M9495LE-40~150℃)

Protective Level: IP68

Electrostatic Protection: 2000V

Physical parameters:

Dimension: (±0.2mm) 25*25mm

Base Material: ceramics

Antenna: Etching Copper foil

Attachment 3M self adhesive

Applications:

Asset Management

Warehousing Management

Matel pallet Administration

Administration of high pressure container
