30*30mm UHF RFID Metal

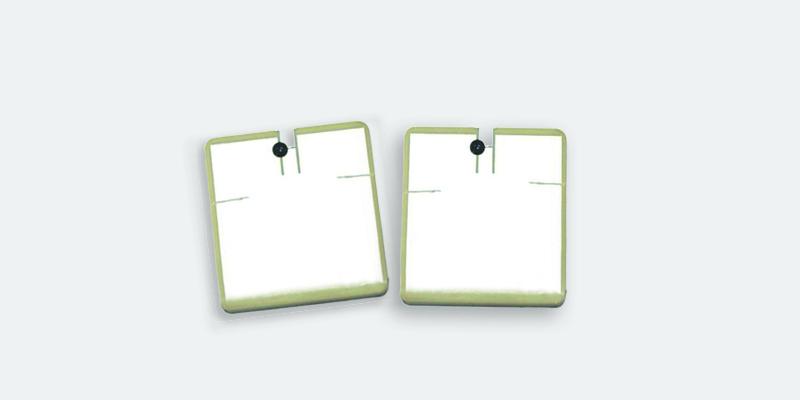

UHF RFID Metal Tag 30*30*2.5mm
Evertrend is a leading supplier for UHF RFID Metal Tag. The Evertrend RFID metal tag has been used in most applications, such as logistics tracking, Asset Tracking, Container Tracking etc.
UHF RFID Metal Tag 30*30mm has long reading distance as 6M with this small size. The square size is most popular in many applications.
Features introduction：
Tag Size: 30*30*2.5mm
Tag type: Passive UHF RFID Tag, Read/Write
Protocol: EPC Class1Gen2（ISO18000-6C)
Frequency range: 865~928MHz (Different model according to the frequency )
Chip: Alien Higgs3, Impinj M3/M4 (Customizable)
Storage: EPC 96Bits, User 512Bits
Handheld reader: 2m （28dBm）
Fixed reader: 4-5mm（30dBm）
Reading distance will be different according to the environment and antenna gain
Erase cycle:≥100,000
Temperature: -40~200℃
Attachment: 3M9495LE（-40~150℃）
Protective Level: IP68
Electrostatic Protection: 2000V
Physical parameters:
Dimension: 30*30*2.5mm(±0.2mm)
Base Material: ceramics
Antenna: Etching Copper foil
Attachment 3M self adhesive
Applications:
Asset Management
Warehousing Management
Matel pallet Administration
Administration of high pressure container
